Five Axis Machining Center Milling Cutting Tools Electronics / Automotive EXGRIP

  • 1
  • 2

Brand Name : HIPPSC

Model Number : EXRK2-04010-04

Certification : ISO9001

Place of Origin : Dongguan, China

MOQ : 1-5 pcs

Price : Negotiable (Price term: EXW, FOB, CFR, CIF )

Payment Terms : T/T, Western Union, Paypal, L/C

Supply Ability : 5000 pcs Per Month

Delivery Time : 2~30 Work days

Packaging Details : Plastic Box with Inner PE Bag In Carton

OEM&ODM : Acceptable

Color : Siliver White

Material : Tungsten Steel

Machine type : CNC Milling Machine

Feature : Anti-interference design milling cutter

Suitable : Suitable for processing a variety of materials to solve processing problems

Contact Now

Electronics / Automotive EXGRIP Milling cutter for Five Axis Machining Center



Ⅰ​. Features And Advantages

1 Made from tungsten steel.
2 Thermal expansion clamping
3 High rigidity, good shock resistance.
4 Suitable for deep cavity processing
5 Super precision even for deep hole machining.
6 Widely used in die, auto parts, aerospace and other industries

Ⅱ. Technical Parametes ​

Product Name

 EXGRIP Milling cutter

Spindle Type

 EXRK

Clamping

Thermal expansion clamping

Processing Type

Milling Process

Product Material

Tungsten Steel


Ⅲ. Product Introduction

Five Axis Machining Center Milling Cutting Tools Electronics / Automotive EXGRIP

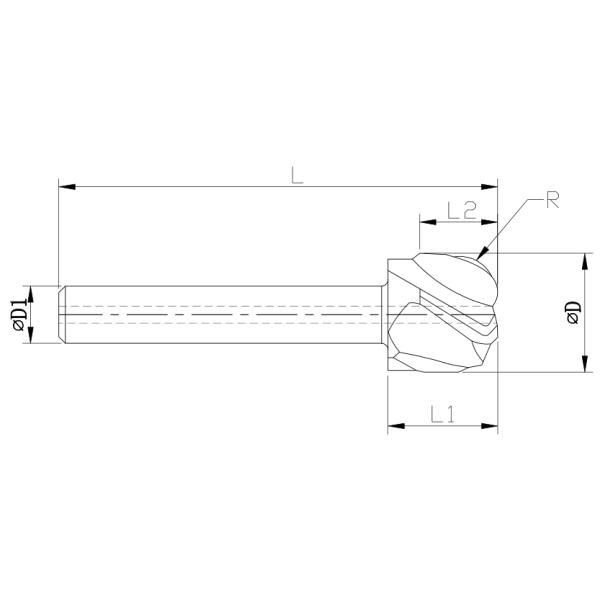

Type D R D1 L L1 L2 Z
EXRK2-04010-04 4 1 2.9 22.5 6.5 4 2
EXRK2-05010-04 5 1 2.9 22.5 6.5 4 2
EXRK2-06005-04 6 0.5 2.9 22.5 6.5 4 2
EXRK2-06010-04 6 1 2.9 22.5 6.5 4 2
EXRK3-06020-04 6 2 2.9 22.5 6.5 4 3
EXRK3-08005-05 8 0.5 5.9 32.5 7.5 5 3
EXRK2-08010-05 8 1 5.9 32.5 7.5 5 2
EXRK5-08020-05 8 2 5.9 32.5 7.5 5 5
EXRK2-08030-05 8 3 5.9 32.5 7.5 5 3
EXRK3-10005-06 10 0.5 5.9 33.5 8.5 6 3
EXRK5-10010-06 10 1 5.9 33.5 8.5 6 5
EXRK2-10020-06 10 2 5.9 33.5 8.5 6 2
EXRK5-10030-06 10 3 5.9 33.5 8.5 6 5
EXRK3-10040-06 10 4 5.9 33.5 8.5 6 3
EXRK5-12005-07 12 0.5 5.9 34.5 9.5 7 5
EXRK2-12010-07 12 1 5.9 34.5 9.5 7 2
EXRK3-12030-07 12 3 5.9 34.5 9.5 7 3
EXRK5-12050-07 12 5 5.9 34.5 9.5 7 5
EXRK3-16040-12 16 4 8 50 15 12 3
EXRK5-16050-12 16 5 8 50 15 12 5
EXRK5-20050-16 20 5 12 54 19 16 5
EXRK9-20050-16 20 5 12 54 19 16 9
EXRK5-25050-20 25 5 16 58 23 20 5
EXRK9-25050-20 25 5 16 58 23 20 9

Ⅳ. Overview for HIPPSC Products

  1. Face Milling Adapters.
  2. Back Lock/Side Lock Tool Holders.
  3. Morse Taper/Tapering Tool Holders/Shanks.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Tool Holders/Arbors/Shanks for Mirror Finishing.
  6. Torque Floating Tap/Tapping Chuck and Collet.
  7. ER/SK/Hydraulic/Back lock/Floating tapping Collet
  8. High Speed ER/SK/GER/GSK Tool Holder for CNC Working.
Ⅴ​. Shipmen​t
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1. Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
3. Using Special Equipment and Gauge To Check Technical Parameters.
Five Axis Machining Center Milling Cutting Tools Electronics / Automotive EXGRIP
Ⅷ. Manufacturing and Sales Service

1. Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2. OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3. Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
